Inversores Off-Grid e Híbridos

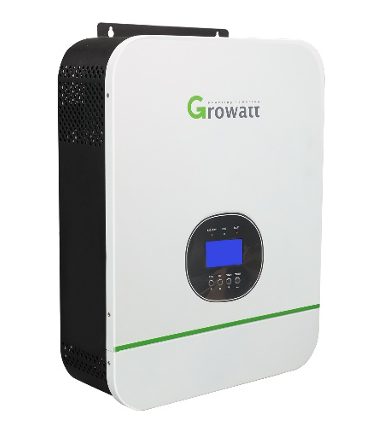

SPF3000 Off-Grid 3kW/24V/48V
- Single phase Off-grid storage Inverter
- 24V: PV Input 30-115VDC / 2000W
- 48V: PV Input 60-115VDC/ 4500W
- Pure sine wave output 3KW
- Inbuilt MPPT 80A High frequency inverter with small lightweight size
- Overload, short circuit and deep discharge protection
- Compatible to mains voltage or generator power
- Parallel operation up to 6 unit
- With CAN/RS485 for BMS communication
- WIFI/ GPRS remote monitoring (optional)

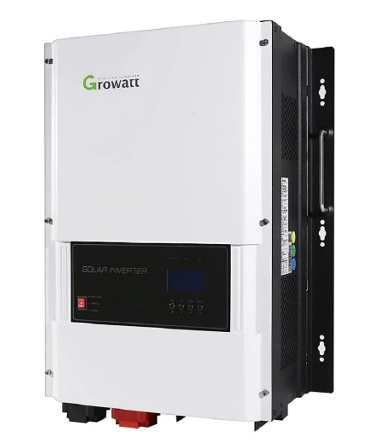

SPF 6000T DVM-US MPV 6kW
- Split Phase Off-Grid Storage Inverter
- PV Input 60-245VDC/ 5000W
- High yields: output power factor up to 1.0
- Low frequency inverter 120/240Vac Split Phase output
- Integrated MPPT charge controller
- Built-in pure copper low frequency transformer
- Configurable grid or solar input priority
- With CAN/RS485 for BMS communication
- WiFi dongle included
SPF 12000T DVM-US MPV 12kW
- Split Phase Off-Grid Storage Inverter
- PV Input 60-245VDC/ 7000W
- High yields: output power factor up to 1.0
- Low frequency inverter 120/240Vac Split Phase output
- Integrated MPPT charge controller
- Built-in pure copper low frequency transformer
- Configurable grid or solar input priority
- With CAN/RS485 for BMS communication
- WiFi dongle included
SPF 18000T DVM-US MPV 18kW
- Split Phase Off-Grid Storage Inverter
- PV Input 60-245VDC/ 14000W
- High yields: output power factor up to 1.0
- Low frequency inverter 120/240Vac Split Phase output
- Integrated MPPT charge controller
- Built-in pure copper low frequency transformer
- Configurable grid or solar input priority
- With CAN/RS485 for BMS communication
- WiFi dongle included

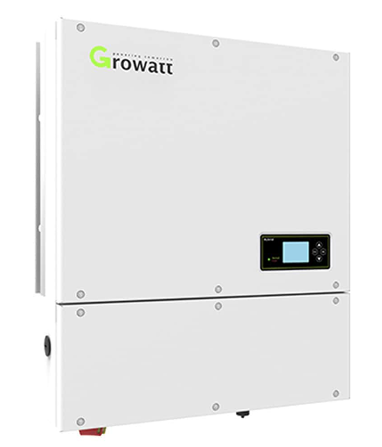

SPH 3000TL BL-US(SM-US) 3kW
- Hybrid ON-grid/Off-Grid inverter
- MPP Voltage Range 150V – 550V/ 6600W
- 2 MPPTs
- Output AC 3kW/ 240V(211~264V)
- IP65 and natural convection cooling
- Programmable working modes
- Supports export control
- Smart online service
- To activate the backup mode in case of grid failures
SPH 6000TL BL-US(SM-US) 6kW
- Hybrid ON-grid/Off-Grid inverter
- . MPP Voltage Range 150V – 550V/ 8000W
- . 2 MPPTs
- . Output AC 6kW/ 240V(211~264V)
- IP65 and natural convection cooling
- Programmable working modes
- Supports export control
- Smart online service
- To activate the backup mode in case of grid failures
SPH 10000TL-HU-US 10kW
- 48V 10.0KW Split-Phase Hybrid Inverter
- PV Input 150-450VDC/ 15000W/2 MPPT
- Output 10kW 120V/240V Split-Phase
- Grid energy injection
- Compatible with Lithium Battery and Lead-acid Battery
- 5 DC/AC Ratio with 2 Mppts
- Up to 200A charging / discharging current
- UPS function, 10ms transition
- Support DC-Coupled, AC-Coupled, AC-retrofit applications
- Type II Surge protection for DC and AC sides
- Parallel connection up to 3
- Support charge from diesel generator
- Support both single phase and split phase application
- Tipo de conexión a la red Monofásica / Fase dividida

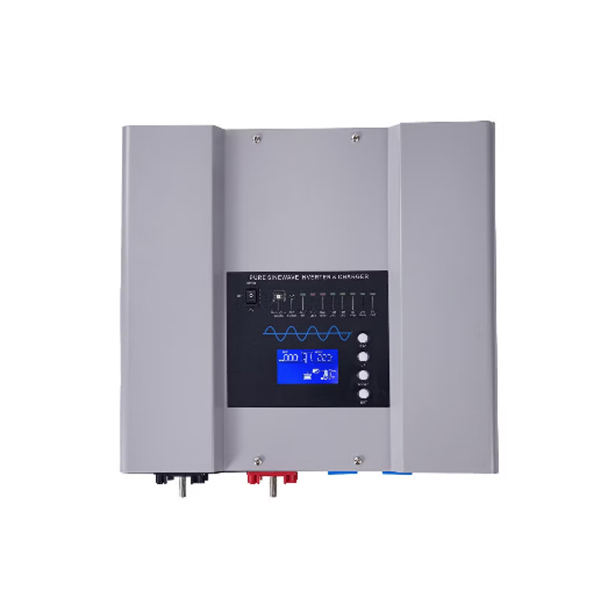

Cargador/ Inversor Off-Grid 1kW
- Nominal Power 1000W
- Voltaje de salida: 120V AC
- Voltaje de entrada 120 AC
- Tipo de onda: onda sinusoidal pura
- Frecuencia 50/60Hz
- Cargador AC 28A
- Protección de carga
- 1 MPPT 40A
- Dimensiones 425*375*200mm
- Peso 19kg

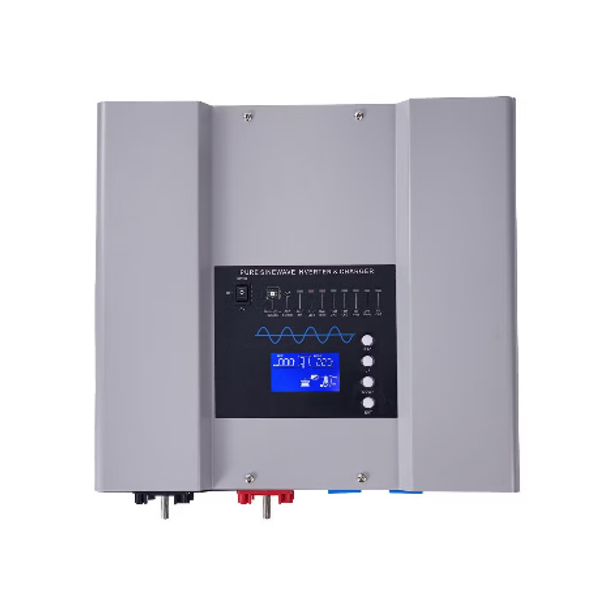

Cargador/ Inversor Off-Grid 2kW
- Nominal Power 2000W
- Voltaje de salida: 120V AC
- Voltaje de entrada 120 AC/ 28A
- Tipo de onda: onda sinusoidal pura
- Frecuencia 50/60Hz
- Cargador AC 28A/50A
- Protección de carga
- 1 MPPT 60A
- Dimensiones 425*375*200mm
- Peso 22kg
